Water Tank Fire- Fighting Truck
Information
Fire- fighting truck with a big water tank. Water tank fire- fighting truck could reach the fire without water resources. Water tank fire- fighting truck is the most basic but important vehicle in fire- fighting vehicle categories because it is good for human rescue activity or extinguish fire in the first stage. The total weight for water tank fire- fighting truck is 15 metric ton and the capacity for water tank is 4000 litter.
Engine
|
5th International Environmental Friendly engine attached with a Diesel Particulate Defuser. Maximum horsepower 250 PS, Maximum torque 75 kg-m. |
| Brake system |
Double force air brake system, ABS and exhausted brake is included |
P.T.O.
|
Two P.T.O. power take-off system: main P.T.O. drives fire fighting pump. Vice P.T.O. (optional) drives high low hydraulic pump. |
Pump
|
Two-pressure fire fighting pump. (Same brand for the main pump and priming pump.) Capacity: 2850 L/10 bar |
| High-low hydraulic pump |
Driven by vice P.T.O. Output: more than 180 bar low pressure hydraulic power and more than 630 bar high pressure hydraulic power. |

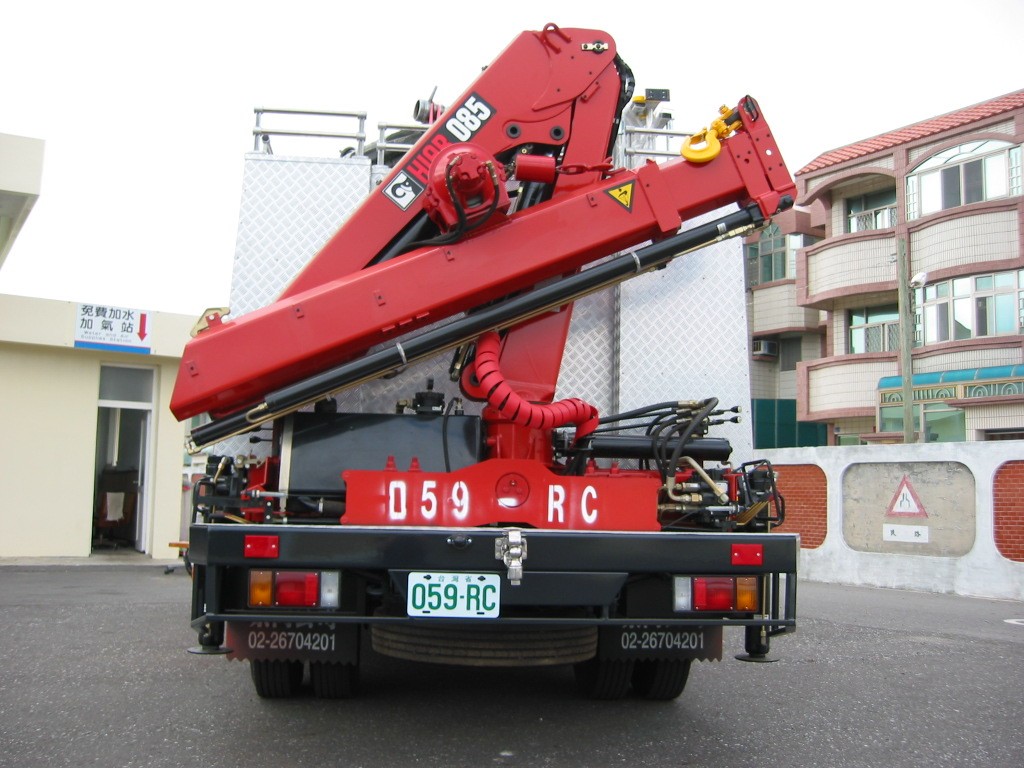

| Hydraulic winch |
Driven by P.T.O. retractor capacity: more than 4500 kg. Cable length: more than 30 m |
| Water tank capacity |
More than 4000 Litter |
Personnel cabin
|
1.More than three seats in the cabin. Doors on the left and right side of the cabin, equipped with AC and communication device between the driver’s cabin and passenger seats.
2.Equipped with fixed mount for 6 Litter air respirators at every back of the seat.
|
Wireless remote control searchlight
|
1.Light: 35 W, 200,000 CD in 25 M.
2.Rain proof, water and dust proof. Passed CE certificate and IP66.
3.Remote control directions of the light: Up/Down/Left/Right. Remote control power of the light: On/ Off.
4.Remote control 440 degree rotation and 120 degree up and down.
|
|
|
