Nozzle
Information

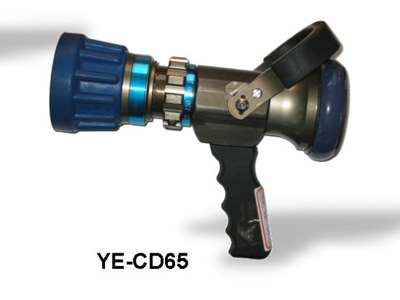

Adjustable turbojet nozzle made by aluminum alloy. Light design and easy to operate.
1. Design
|
This model is a small and light pistol grip nozzle. Easy to transport. There is a ㄇ shape operating lever to adjust water flow. |
2. Material
|
A：Aluminum alloy
B：Bolt, screw cap are made by stainless steel. |
| 3. Inlet |
1-1/2” female brass quick connect or NST(NH)(Opetional) |
| 4. Outlet |
Switch on/off, adjustable water flow to water column or mist. |
| 5. Wright |
3.2kg +/- 0.5kg(Without foam eductor),4.3kg +/- 0.5kg(With foam eductor) |
6. Function
|
Three stages outlet function: linear/ spray/ stop
A：Test pressure: 300PSI(21kgf/cm²)
B：Nozzle can adjust four stage water flow: wide/narrow water column or wide/narrow spray at 100 PSI (7kgf/cm).
C：The spiral guide ring at the front of nozzle can produce spiral for spout and spray by water pressure. |
| 7. Inlet pressure |
100PSI(7kgf/cm²) |
8. Max. outlet(GPM)
|
Water column：30/60/95/125
Narrow spray：35/65/100/130
Wide spray：40/70/105/135 |
9. Mist angle (lim.)
|
Water column：***
Narrow mist：95°
Wide mist：135°
Foam eductor: 5~8 times expansion rate. |
10. Range (lim.)
|
Water column：30/32/35/38 meter
Narrow mist：17/18/19/19 meter
Wide mist：11/12/13/13 meter
Foam eductor range: 35/38/39/42/45 meter
|
|
|
